SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Showroom Location: None

Condition: New

Brick Raw Material: Sand

Processing: Brick Production Line

Method: Hydraulic pressure

Automatic: Yes

Place of Origin: HENAN

Brand Name: YUGONG

Voltage: 10KW

Warranty: 1 Year

Key Selling Points: Easy to Operate

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Motor

Weight (KG): 1050 kg

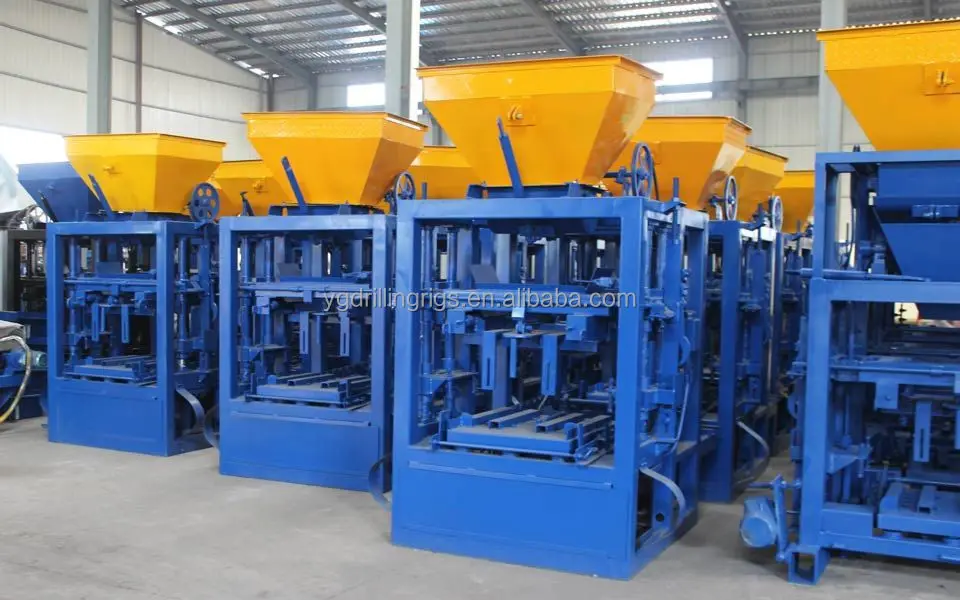

Product Name: Brick Making Machine

Raw material: Sand

Block Type: Hollow Concrete Brick Machine

Color: Customied

Model: YG-26C

Pallet size: 850*550mm

Material: High Grade Steel

Certification: CE ISO

Application: Buliding Construction

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact the customer service for more product details and quotations!

2.We ship the goods by sea !!

3.Door to door please leave message or whatsapp or email for price !!!

Contact: Kathy

WhatsApp/Wechat/Mobile: +86 13937192057
Email: sales17yugong@yg797.com

Product Description

Main features and advantages:

1.Superior vibratory effect: simultaneous vibration.the blocks produced are of good quality, large density and high strength
2.Solid and Strong Machine Body: best steel Q235B,CO2 gas protective welde make the machine unable to break.
3.High Quality Mould: All mould use heat treatment.
4.Low cost and user-friendly: So easy to operate,reducing labor force.
5.Durable and cost-effective: German brand Siemens motor, schneider brand switch, we can provide u with higher quality product with competitive price than others

Specification

Model	YG-15
Forming cycle	15-25s
Pcs/mould	8 pcs for 400x200x200mm hollow block
Hydraulic pressure	21Mpa
Vibrating frequency	2800-4500r/minute
Power	55.5KW
Pallet size	950x900mm
Dimension	8300x1860x2900mm
Weight	10000kg
Brick material	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.

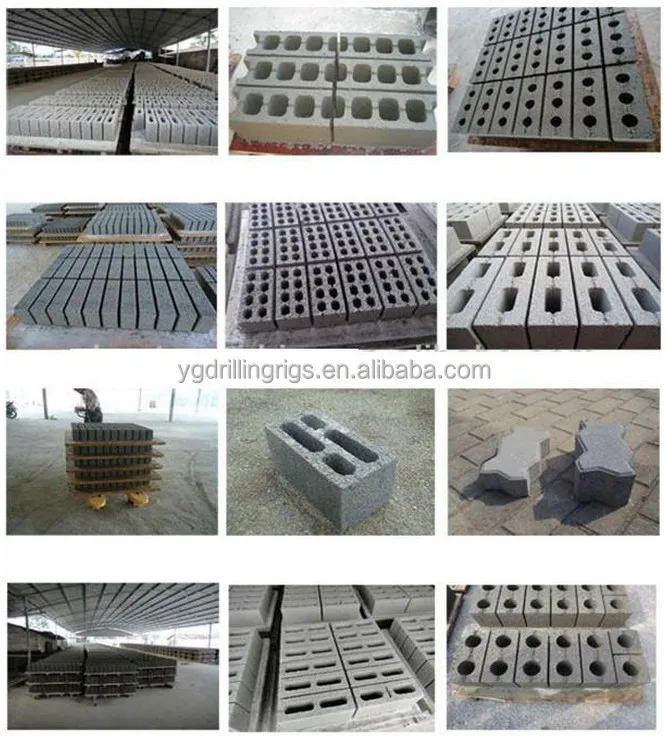

Applied product	Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.

Product Feature



Theoretical production capacity

Name	Size, mm	pcs/mould	mould period	pcs/hour
Hollow block	400*200*200mm	4	20-24 seconds	360-450
Hollow block	400*100*200mm	7	20-24 seconds	630-830
Hollow block	400*150*200mm	5	20-24 seconds	450-600
Hollow block	400*250*200mm	3	20-24 seconds	270-360
Solid block	240*115*53mm	24	20-24 seconds	3600
Paving block	200*100*60mm	14	30 seconds	1680
Paving block	200*163*60	10	30 seconds	1200

Application

Company Profile

Certifications

Packaging & Shipping

FAQ

1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
