SPECIFICATIONS

Brand Name: EASYBOOST BUILD SIGNAL DREAM

Item Type: Antenna

Origin: Mainland China

Hign-concerned Chemical: None

Model Number: BA-T5G

Frequency: Uplink:663-698Mhz/Downlink:617-652Mhz

Max Gain: 75dB

Max Output Power: 20dBm

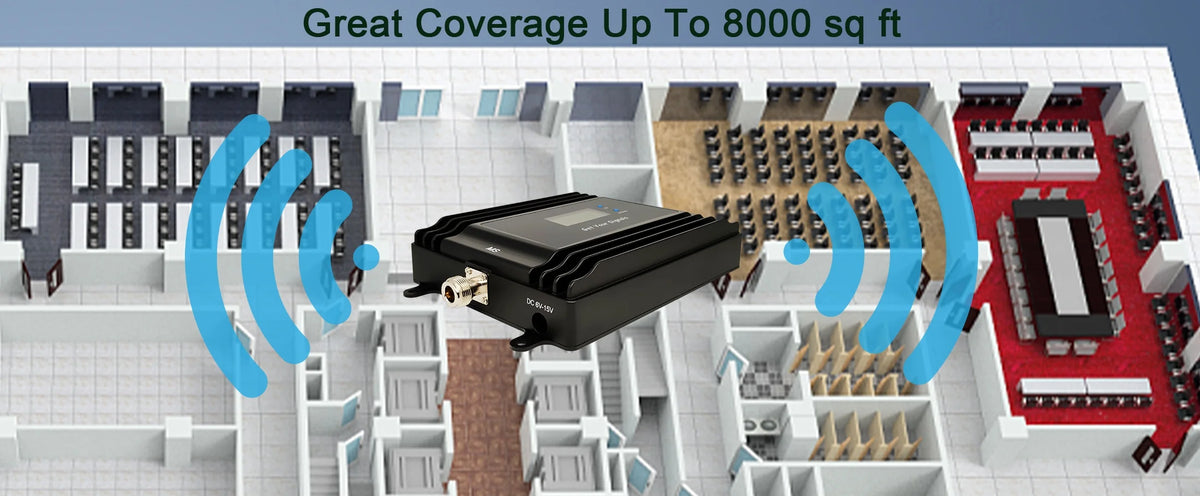

Coverage: Up to 8,000 sq sf

Compatible Networks: 4G,5G voice and data

Compatible Carriers: T-mobile/Sprint/U.S.Cellular

Compatible Phones: universal

FCC Approval: Yes

AGC: Yes

Uplink dormancy: Yes

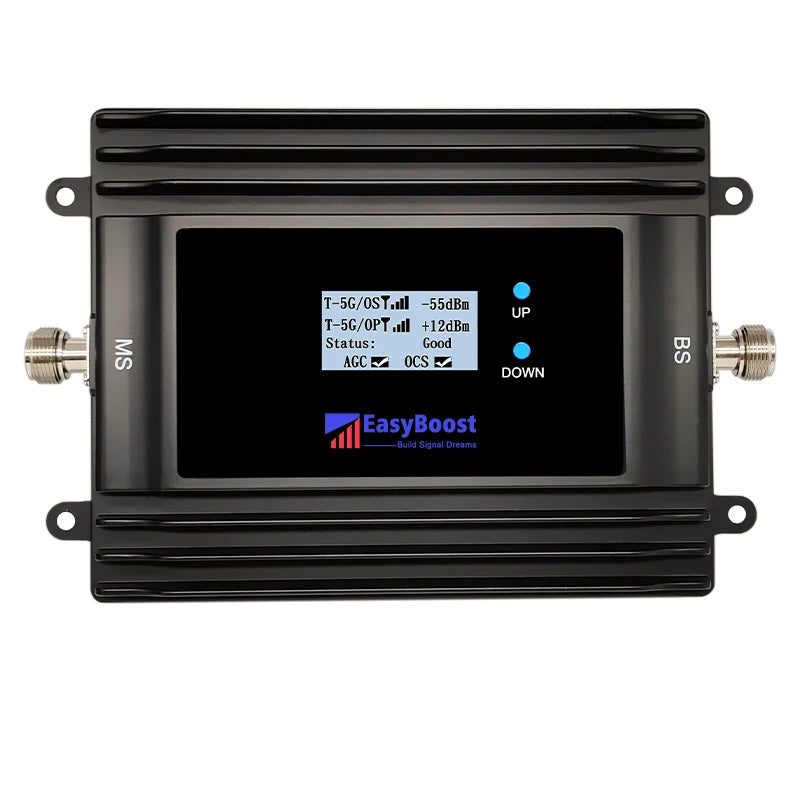

LCD digital display: Yes

Anti-self-excitation: Yes

Power Supply: AC100-240V,DC12-3A

Weights: 1kg

Size: 175*135*35mm

Before place your order,please check and confirm you are using N71 600Mhz for your 4G or 5G network.

The coverage of the BA-T5G up to 8000 sq ft,it depends on the outside signal strength which is received from the cell tower.

With the help of the booster, you can improve your T-Mobile/Sprint/U.S.Cellular/Rogers/Telus 4G 5G internet data experience.

The Features:

1,Works for T-mobile/Sprint/U.S.Cellular/Rogers/Telus 4G&5G network

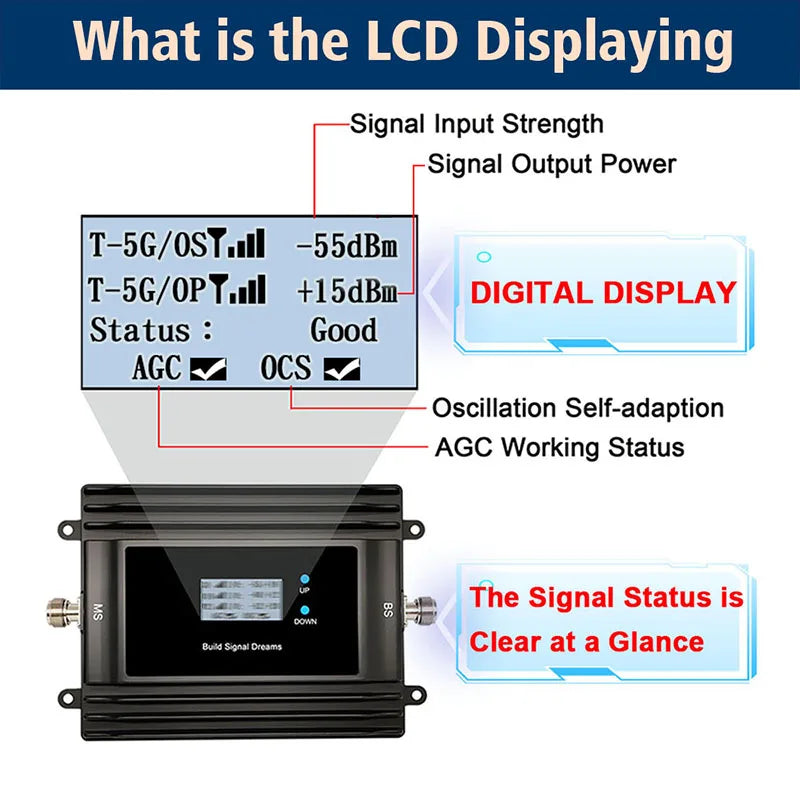

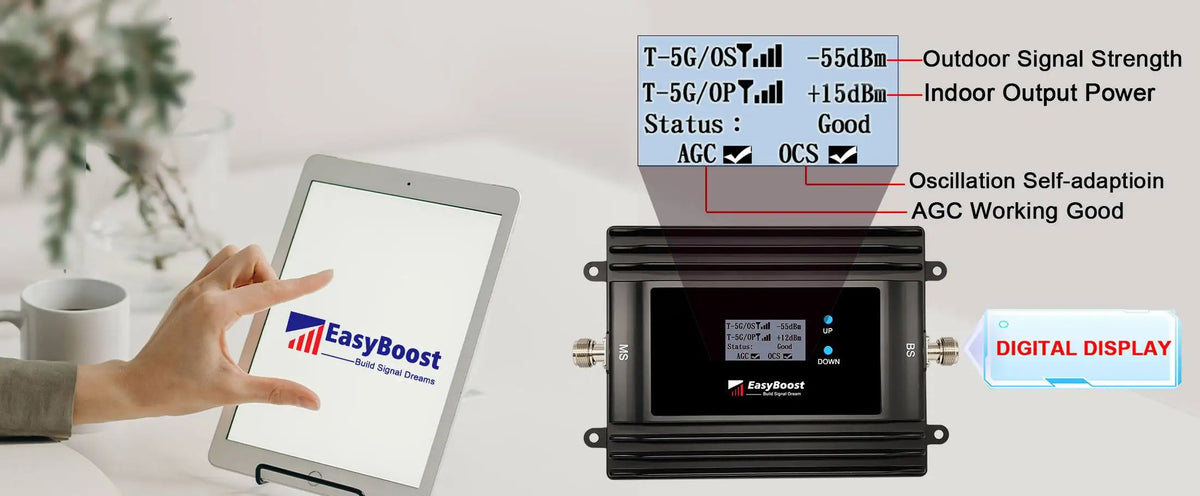

2,Digital Smart LCD shows working status

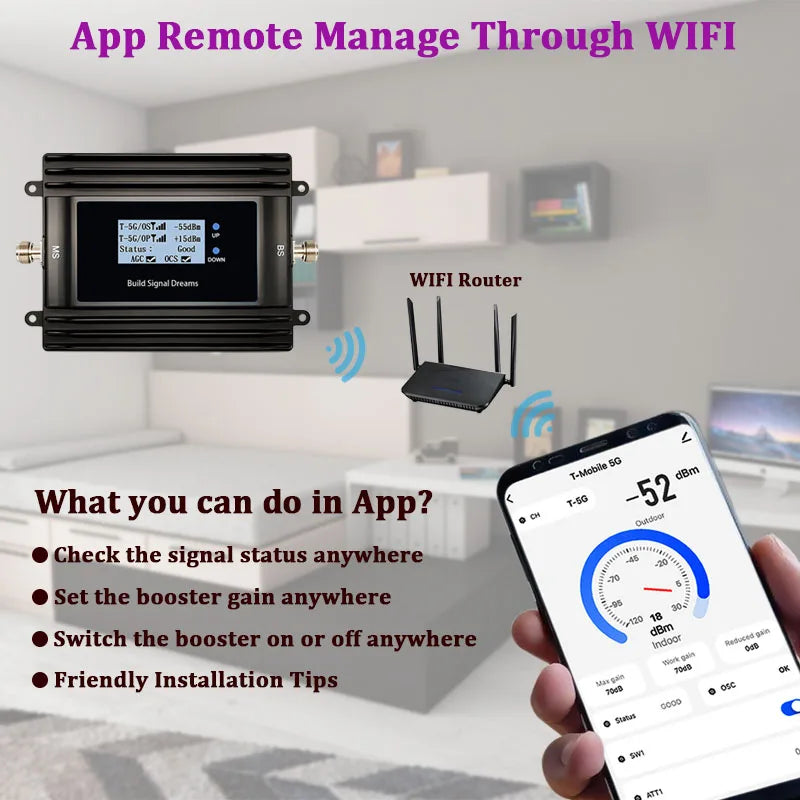

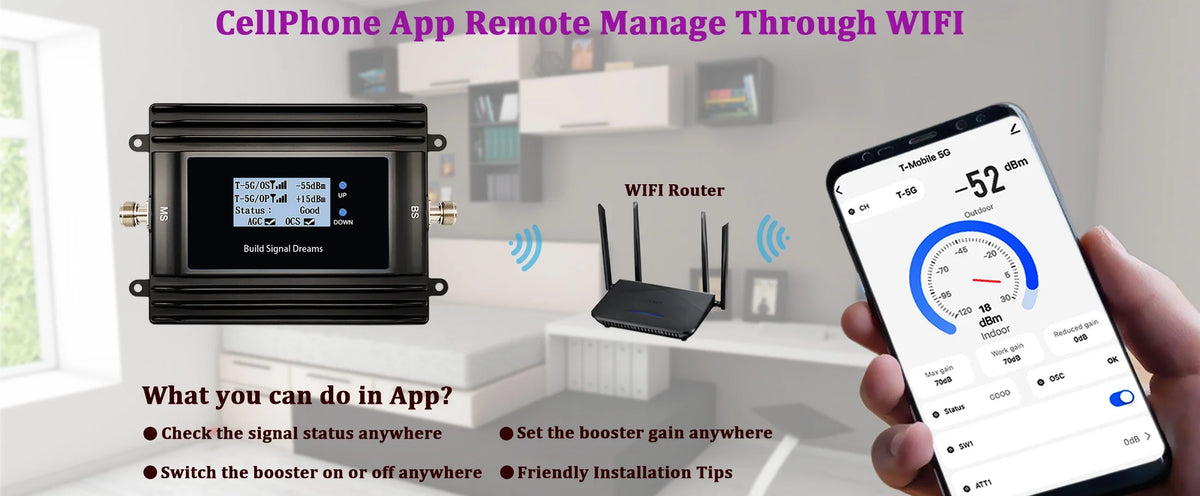

3,Cellphone App management

4,Simple installation

5,Low noise amplification

6,Prevention of self-excited never disturb the cell tower

7,Coverage up to 8000 sq ft

What is in the box?

1, BA-T5G signal booster*1.

2, Power supply *1 .

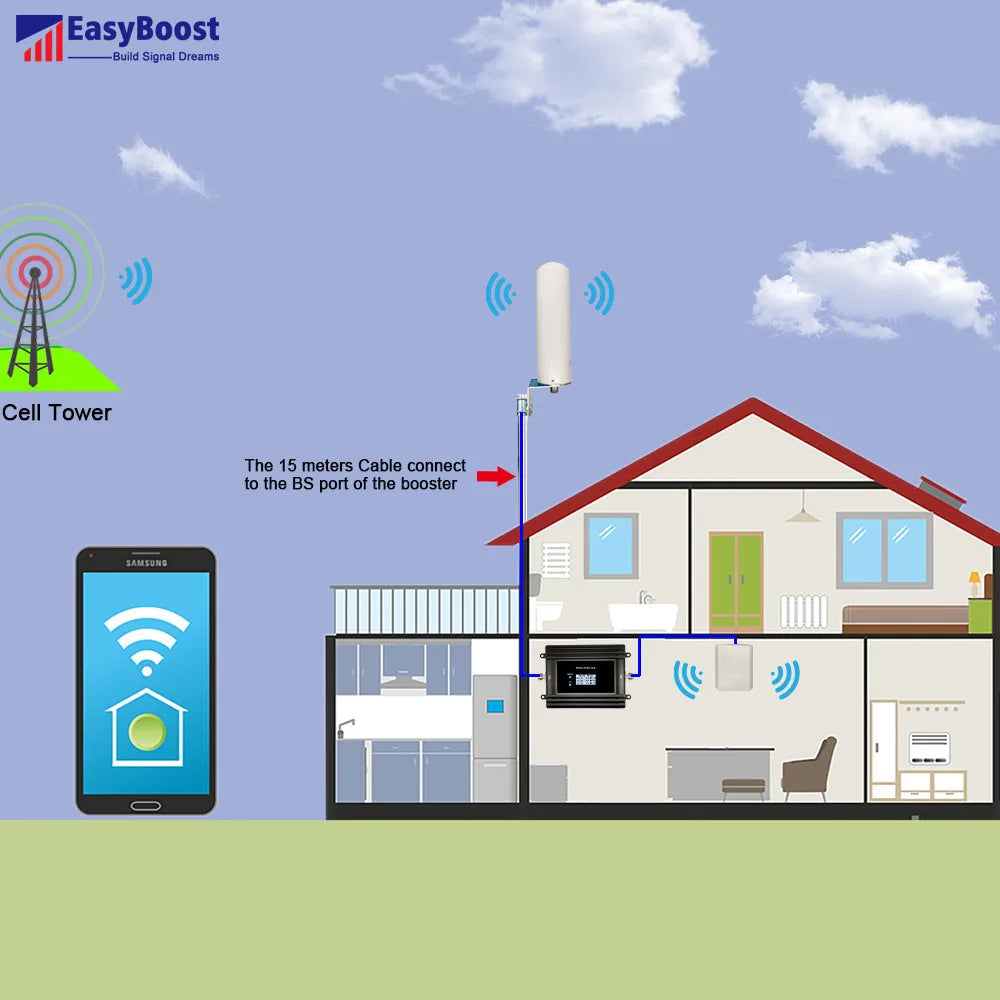

How To Do The Installation:

1, Walk around your roof to find the strongest signal location, mount the outdoor Omni antenna, and let it points towards to the sky.

2, Install the booster indoor where nearby the power outlet,make sure it is ventilated and away from heat sources and moisture.

3, Connect the outdoor antenna to the BS port of the booster by the outdoor cable provided.Try to make the VERHICAL distance from outdoor antenna to indoor antenna as long as possible(at least 20 feet),a thick barrier is required such as a roof or a wall between the outdoor and indoor antenna.

4, Indoor antenna connect to MS port by the indoor cable provided.

5, Connect the booster to the AC supply once all the connections done.

6, Make sure the outdoor signal strong enough to cover the area you need,stronger outdoor signal wider coverage.

Note: This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. This device may be operated ONLY in a fixed location for in-building use.
