SPECIFICATIONS

Brand Name: TVPSii

Origin: Mainland China

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows XP

Lens (mm): 2mm

Style: Box Camera

Connectivity: WIFI

Installation: Wall Mounted

Minimum Illumination(Lux): 0.01LUX-0.0001LUX

Scene: Indoor and outdoor

Color Night Vision: no

Megapixels: 8MP

Storage: 256GB

Video Compression Format: H.265

IR Distance(m): 200m/500m

Certification: CE

Certification: RoHS

Color: White

Color: black

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

Movement Range(Tilt): other

is_customized: Yes

Model Number: TP-WZ08W-90X(54X)-Sim

Supported Mobile Systems: IOS

Supported Mobile Systems: Android

Smart home platform: other

AI Functions: Smart Tracking

IP Rating: IP66

Special Features: Waterproof / Weatherproof

App name: other

TF Card: None

Digital Zoom: none

Power Supply(V): 12V

Rechargeable Battery Capability: other

Audio Output: Two Way Audio

Power Consumption(W): <30W

Sensor: CMOS

Sensor Brand: Sony

Operating Temperature: -50°- +60°

Shell Material: Metal

Power Supply: Normal

Viewing Angle : 360°

Optical Zoom: other

Movement Range(Pan): 0°-360°

Rechargeable Battery: none

Materials: metal

Warranty: 1 year

Camera APP: Camhi,Camhipro

Audio: Microphone and Speaker

Auto Tracking: support

Rotation: 355 Degree(54X)/360 Degree(90X)

Storage capacity: Max.256GB

WIFI Antenna: External antenna

Power adapter: 12V 2A(54X)/12V 3A(90X)

Choice: yes

semi_Choice: yes

Friendly Reminder:

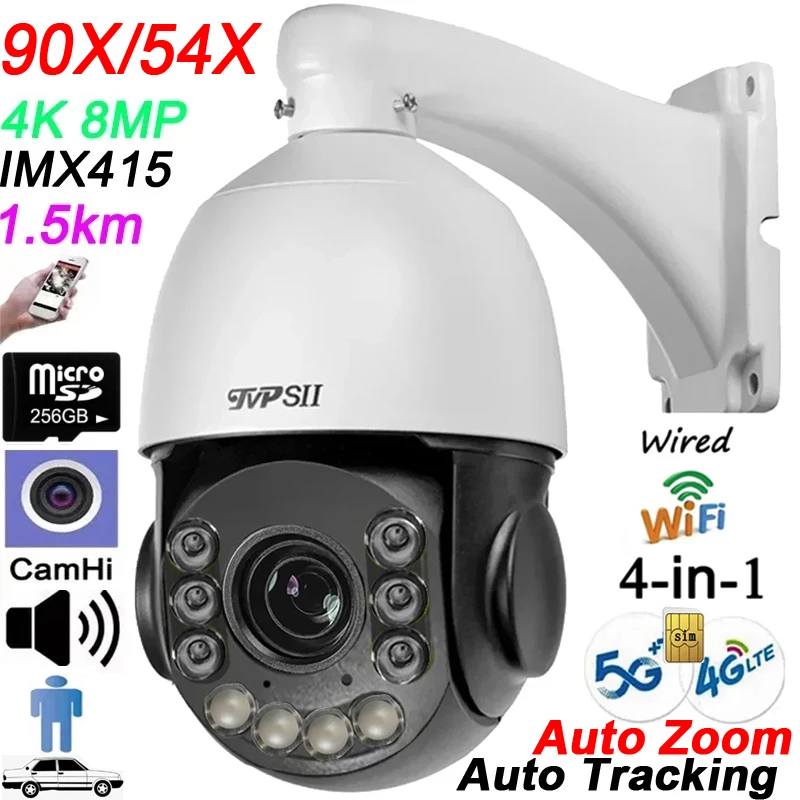

• This PTZ camera is four in one,support 4G sim,5G sim,wifi and Lan,Default is sim Connect way,if want Changed to Wifi Connect Network or wired Lan ,please consult the seller for get guide video.

• PTZ Camera all support human auto tracking,automatic cruise,Humanoid detection Alarm.

• 54X 90X PTZ camera is Infrared night vision, support black and white night vision.

• 90X PTZ Camera is 360 degree rotation,54X PTZ Camera is 355 degree rotation.

• GK7605 V100+1/2.8" Sony IMX335:5MP,2592px*1944px.

• Mstar338Q+1/2.8" Sony IMX415 4K 8MP 3840px*2160px.


• Support Auto Zoom,Auto Tracking human

• Support 8 preset points,support 355-degree rotation, AB two points, multi-point cruise, large monitoring range, precise positioning and other advantages.


Q:Which alarm methods are supported?

A:Support set human detection Alarm, auto voice alert, video and picture capture when human body movement.

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:What is Auido function?



A:Recorder video with Sound, can voice intercom.



Resolution	8MP	5MP
system structure	Mstar338Q	GK7605
CMOS Sensor	4K 8MP 1/2.8" Sony IMX415	5mp 1/2.8" Sony IMX335
Min illumination	Low illumination 0.001Lux	Black light illumination,0.0001Lux
Video processing	H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format
Image output	8MP 3840px*2160px	5MP 2592px*1944px
Shutter	1/50 (1/60) seconds to 1/10000 seconds

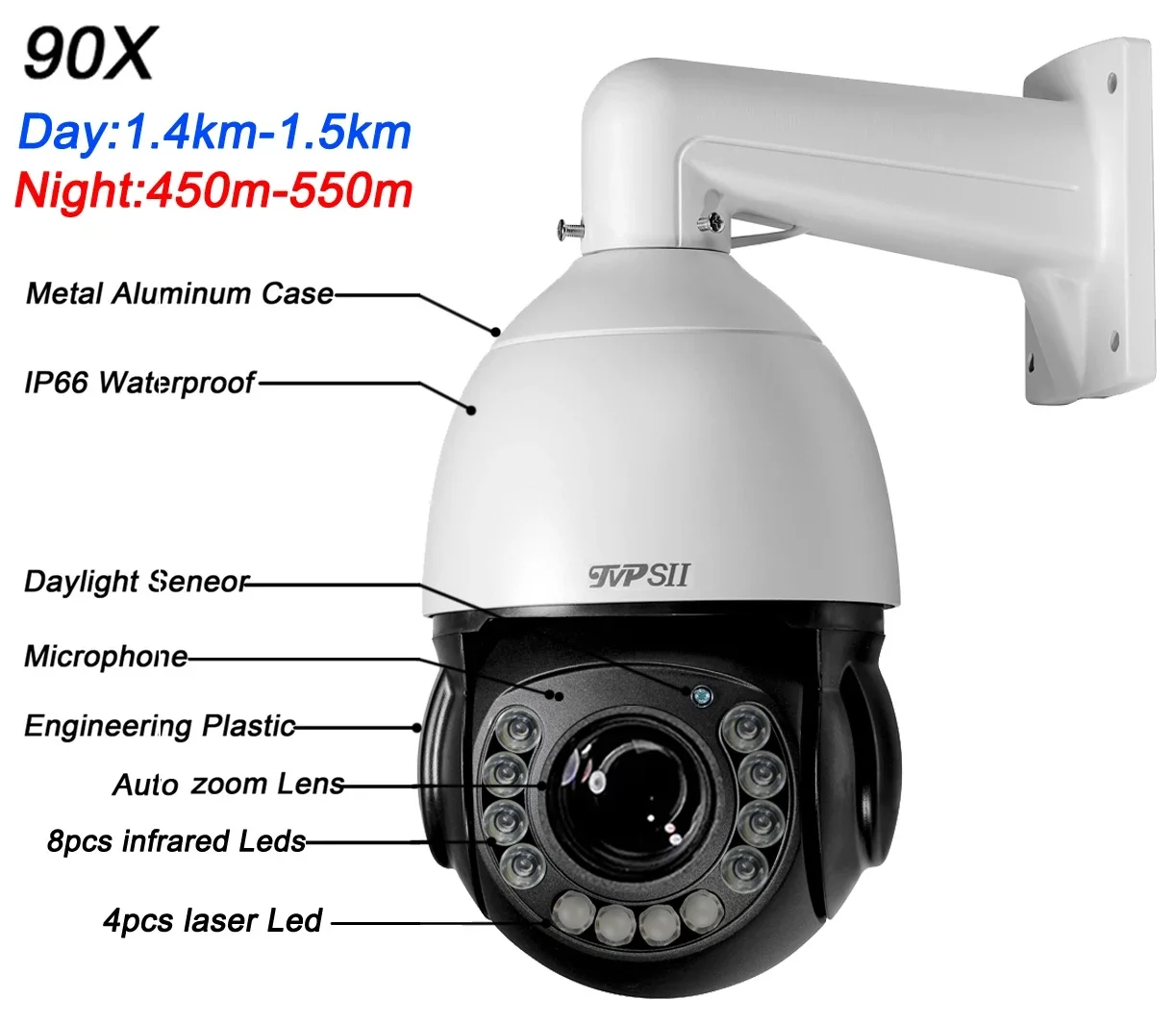

ILed Light	10pcs infrared Array Led Light(54X)/8pcs infrared Led+4pcs laser Leds(90X)
IR Distance	150m-200m(54X)/500m(90X)
Conversion mode	Day and night conversion mode
Noise reduction	Support 2D/3D noise reduction
Wide dynamic	digital wide dynamics
Network Interface	1*RJ45 network interface,10/100M adaptive
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -10 ℃ ～ 65 ℃ test is stable and reliable
Cruise settings	Support(Fixed-point cruise, cruise between two points,360° cruise,......)
SD Card	Support(Max:256G)
Human Auto Tracking/cruise	Support
Network Support	4G 5G sim, 2.4 GHz/5.0GHz/IEEE802.11b. 802.11g. 802.11n Draft
Presets	128
Optical focus	54X/90X
ONVIF	support
Rotation	90 degrees vertical,355 degrees horizontal(54X)/360 degrees horizontal(90X)
Water resistance	IP66
Work Temperature	-50°C ~ +60°C
Weight	2.1kg(54X)/3.5kg(90X)
Phone monitoring	CamHipro,Camhi
Power Supply	12V 2A(54X)/12V 3A(90X)

Friendly Reminder:

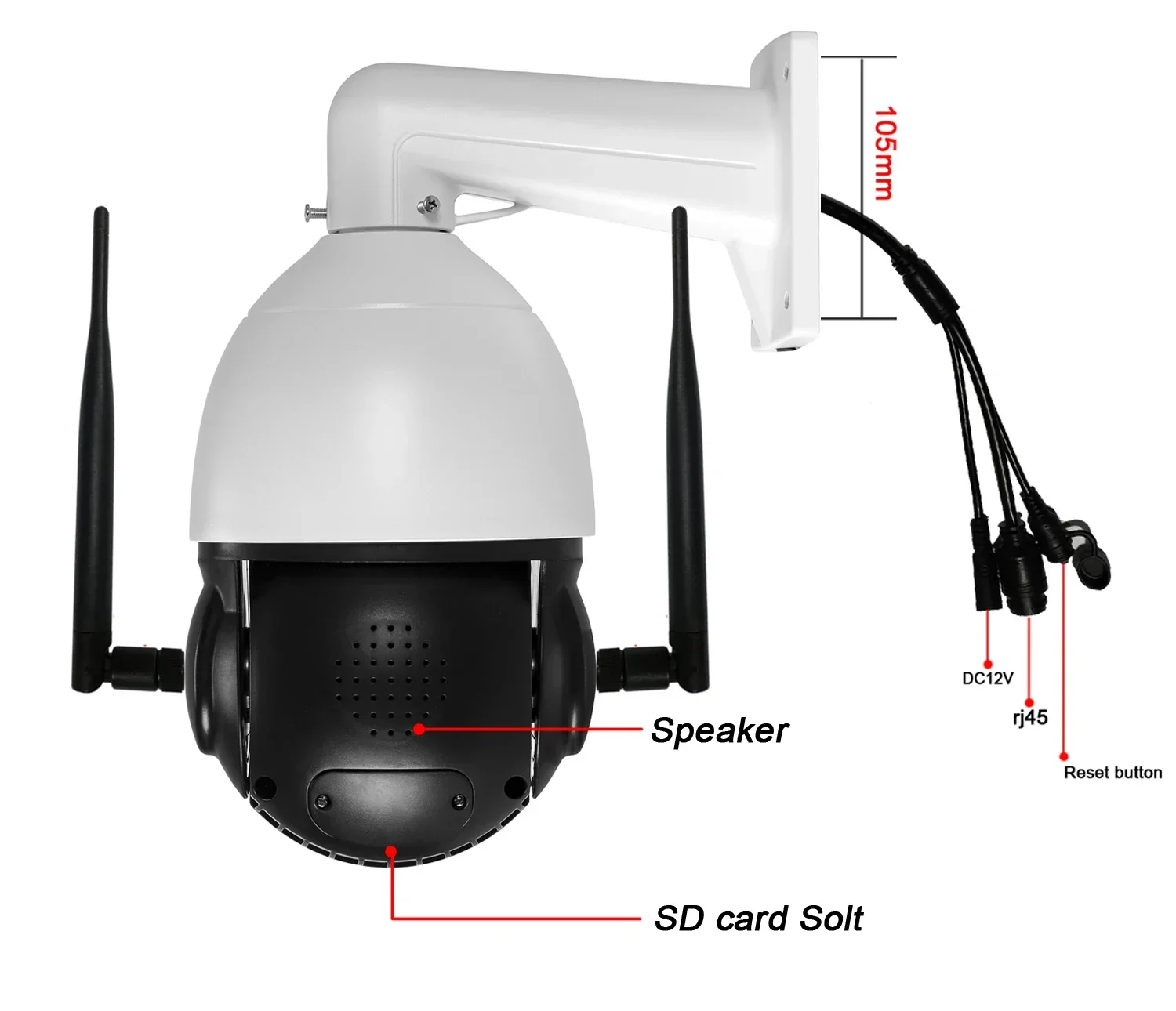

• Need open camera(very easy),then find the SD Card Slot Position and insert SD Card.

• if you want restore factory set, please push "reset" button for 5 seconds.(we also do reset function by app)


• We refuse to use expansion cards and high imitation card, use brand memory cards(certified products), quality is guaranteed, showed at the picture.


Notice:

WIFI or 4G Camera work not good with12V 1A Power adpater at night ,  the night vision of camera is very bad ,so we use 12V 2A power adpater!!!(many seller use 12V 1A for cutting cost,so be careful)

NOTICE:

Q:it always cause problems in trade between countries,for example, bad weather for delay, custom problempost worker broken it, and so on.

A:if you have any problem,please frist contact us,not easy input dispute or give me a bad feedback,we will try our best to help you reslove problem,We welcome those friendly customers,Thanks!
