ELP 16MP Webcam 4656x3496 Ultra HD Web Camera IMX298 UVC 10X Zoom Mini USB Camera for Industrial Inspection, Photograph,Security
Precio habitual $160.93
SPECIFICATIONS
Brand Name: ELP
Origin: Mainland China
High Definition: 12.0 Megapixels
Hign-concerned Chemical: None
Supported Operating Systems: Windows 10
Supported Operating Systems: Windows Vista
Supported Operating Systems: Windows 8
Supported Operating Systems: Windows 7
Supported Operating Systems: Windows 98
Supported Operating Systems: Mac OS
Supported Operating Systems: Windows XP
Lens (mm): 2.8-12mm
Lens (mm): 5-50mm
Style: Mini Camera
Connectivity: USB
Installation: Normal
Minimum Illumination(Lux): 0.5
Megapixels: 9MP
Storage: None
Video Compression Format: MJPEG
IR Distance(m): 0
Certification: CE
Certification: FCC
Certification: RoHS
Dimensions (L x W x D)(mm): 38*38mm
Color: black
is_customized: Yes
Model Number: ELP-USB16MP01-MFV
Supported Mobile Systems: Android
Smart home platform: none
TF Card: None
Power Supply(V): 5V
Audio Output: None
Power Consumption(W): DC 5V/ current: 150mA
Sensor: CMOS
Operating Temperature: -10°-60°
Power Supply: usb bus power
Viewing Angle : 90°
Image Sensor: IMX298 Sensor Camera
High Resolution Resolution: 16MP USB Camera
Picture format: MJPEG&YUY2 optional
USB Protocal: High speed USB2.0 HS/FS, USB1.1 FS
Varifocal lens: 2.8-12mm /5-50mm/6-60mm varifocal lens optional
OEM: Support
PC Laptop OS Support: Android /Linux/Windows/MAC OS
OTG: Support, can connect with Android mobile phone
Cable: default 3meter cable
Free Driver: Plug and Play
ELP 16MP Webcam 4656x3496 Ultra HD Web Camera IMX298 UVC Driverless 10X Zoom Mini USB Camera for Industrial Inspection ,Video Security, High Resolution
Package includes:
1) 1PC 16mp usb camera with a varifocal lens (or without lens. It depends on your choice)
2) 1PC 3m usb cable (2m/5m optional)
Ultra HD: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

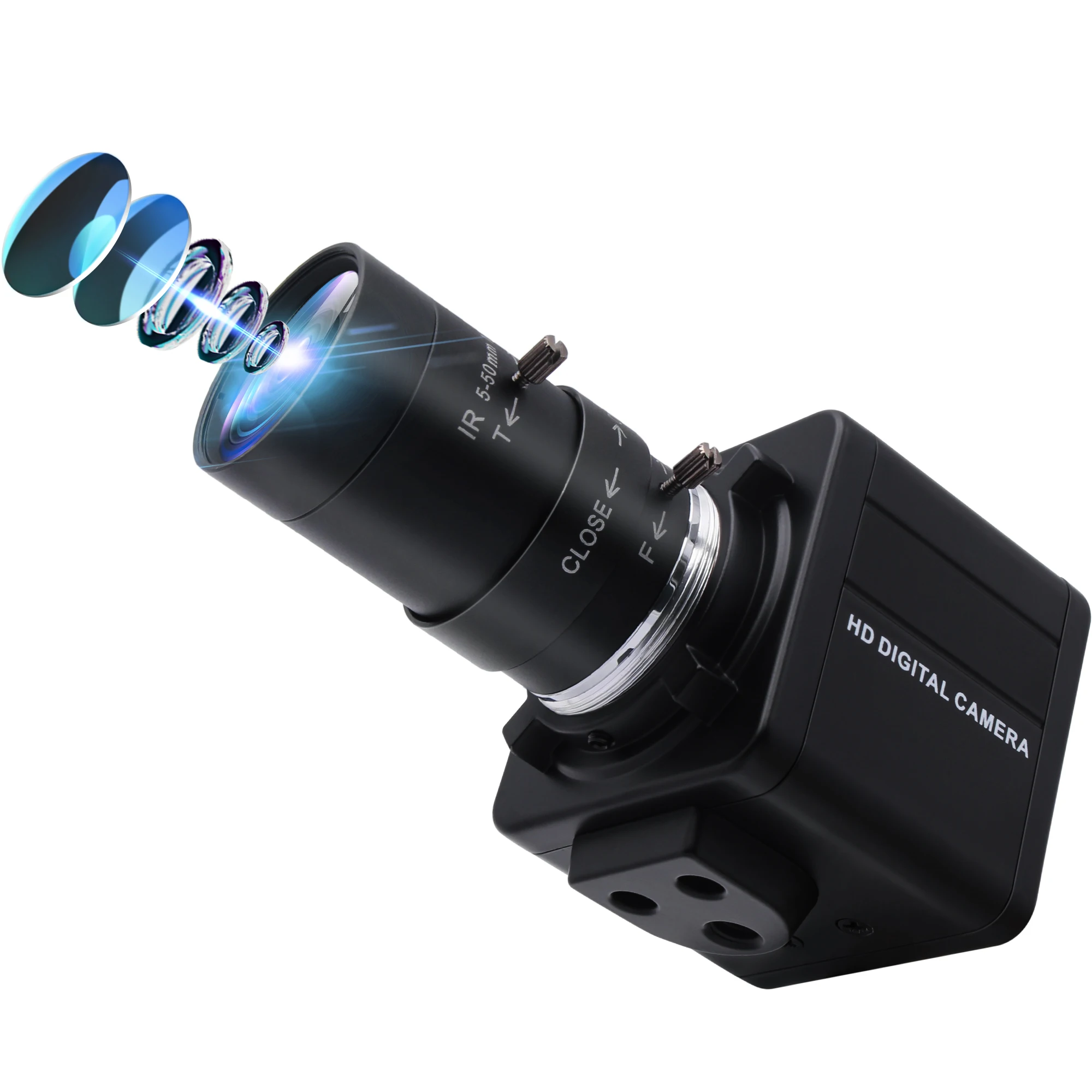

Manual Zoom Varifocal lens : Mounted a High quality 2.8-12mm /5-50mm varifocal lens

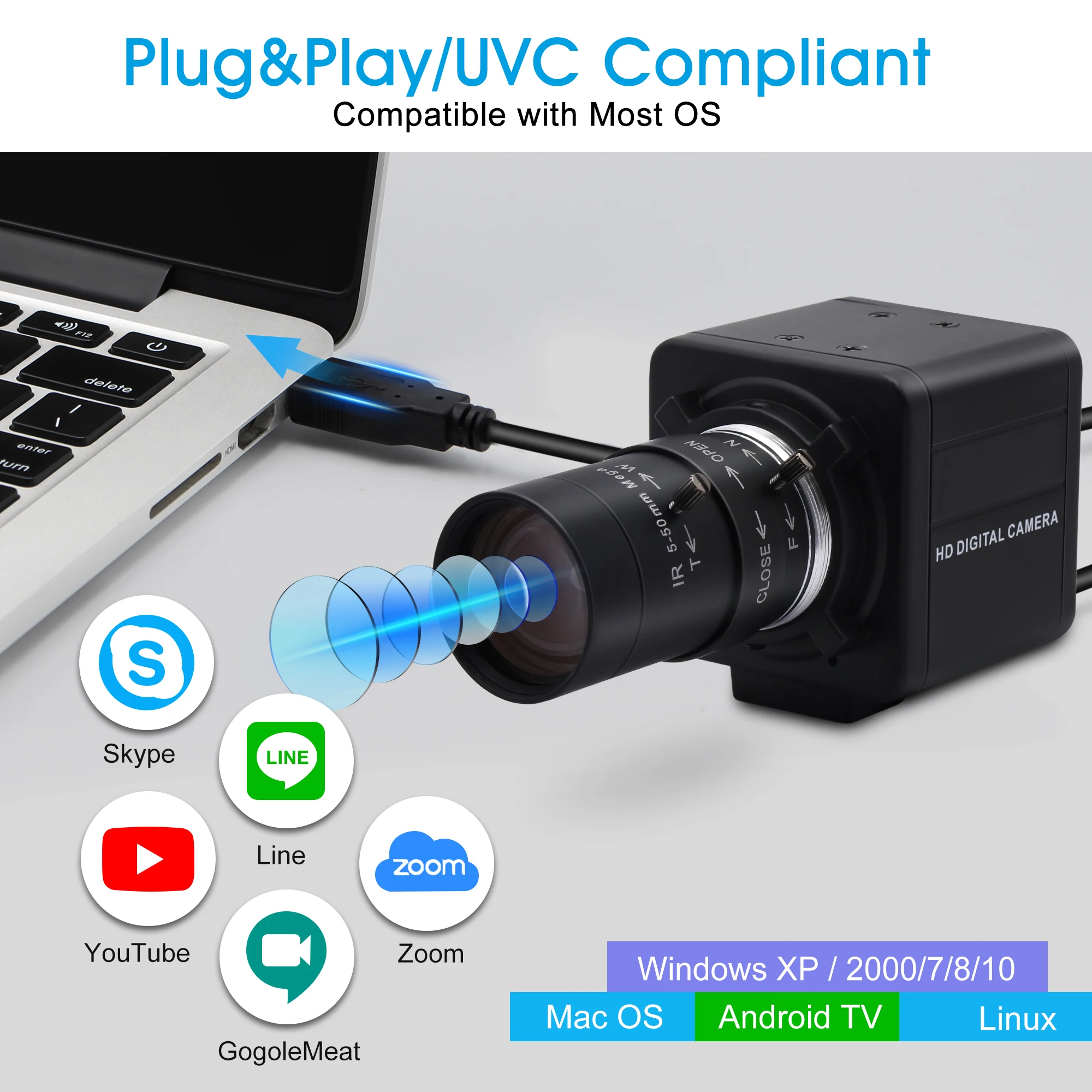

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
High Frame Rates: MJPG 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, 30fps@2048X1536/1600X1200/1280X720;

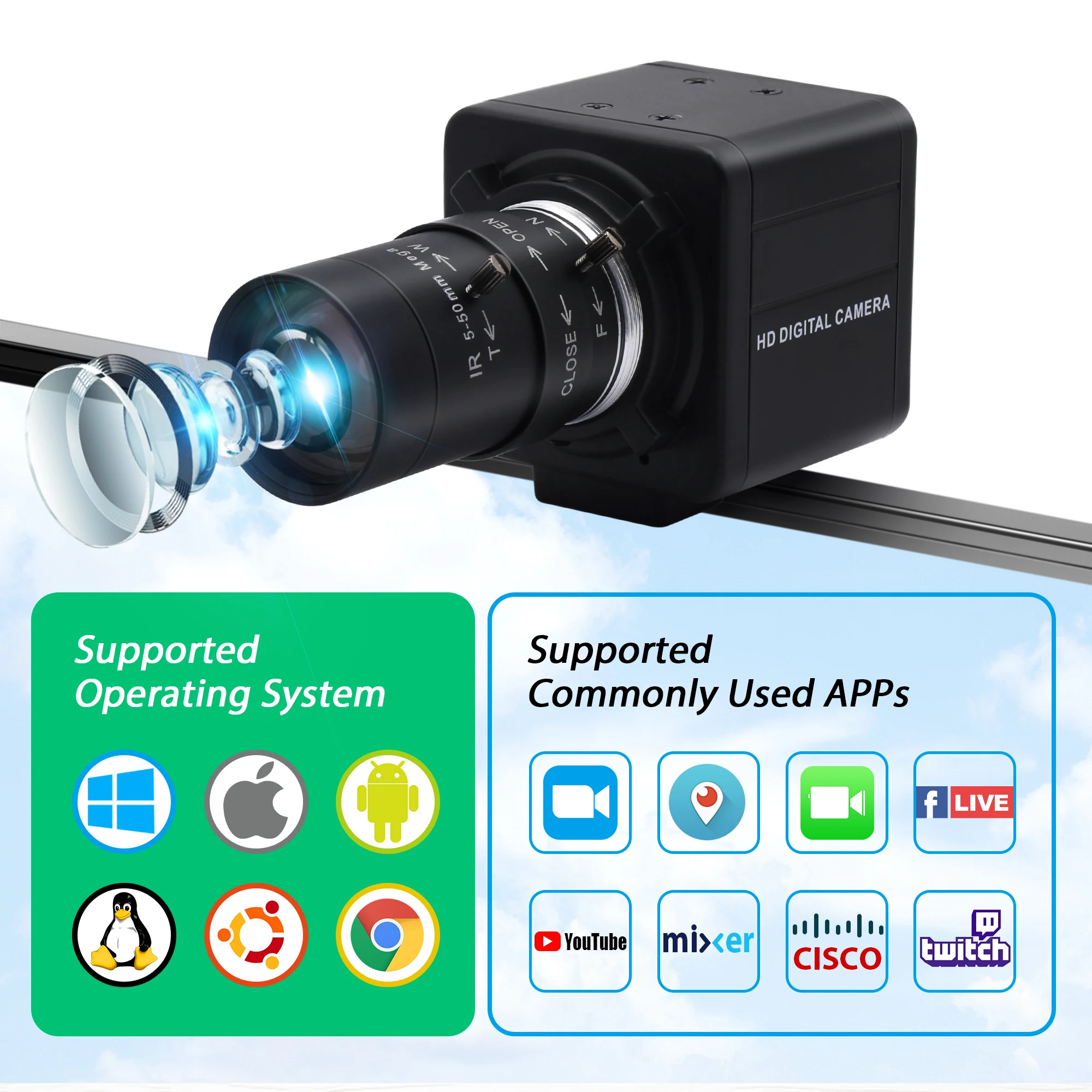

Support OS: Android Linux Windows MAC OS
Applications:Come with a metal case , this tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, document/ passport scan ,taking photos with ID documents, and high-speed photographic apparatus . barcode, QR code scanand other robot vision systems .
|
USB Camera Models for optional |
ELP-USB16MP01-MFV(2.8-12) (with 2.8-12mm varifocal lens) ELP-USB16MP01-MFV(5-50) (with 5-50mm varifocal lens) ELP-USB16MP01-MFV(6-60) (with 6-60mm varifocal lens) ELP-USB16MP01-MFV (without lens/no lens) (Only lens is different,other parameter is same) |
||
Sensor |
IMX298 |
||
Sensor Size |
1/2.8inch |
||
Pixel Size |
1.12um |
||
Image area |
6.4mm x 5.3mm |
||
Max. Resolution |
4656(H) X 3496(V) 16Megapixel |
||
Compression format |
MJPEG / YUY2（YUYV） |
||
Resolution & frame |
|
||
Min illumination |
0.5lux |
||
Shutter Type |
Electronic rolling shutter / Frame exposure |
||
Connecting Port type |
USB2.0 High Speed |
||
Free DriveProtocol |
USB Video Class（UVC） |
||
AEC |
Support |
||
AWB |
Support |
||
AGC |
Support |
||
Buttoncamera |
Support |
||
Adjustableparameters |
Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, |
||
Lens Parameter |
2.8-12mm/5-50mm/6-60mm varifocal lens optional |
||
Power supply |
USB BUS POWER4P-2.0mm socket |
||
Operating Voltage |
DC5V |
||
Working Current |
150mA~240mA |
||
Working temperature |
-10～70℃ |
||
Storage temperature |
-20～85℃ |
||
Camera size/Weight |
41*41mm/ about 250 |
||
Cable |
Standard 3 meter / optional 1M,2M,5M |
||
Operating system request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
Shenzhen Ailipu Technology Co.,Ltdfounded in 2005, is a 18 years professional USB Cameras manufacturer. Our own brandELPis well known in USB cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS, UL.
We produce Multiple USB Cameras for Industrial, Commercial, Medical vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3MP, 1MP, 2MP, 3MP, 5MP, 8MP to 48MP. And recently we launch new ultra HD USB cameras like Super Sharp 48MP 16MP, 4K HDMI cameras.
We also manufacture special function Auto focus cameras, High frame rate cameras, Low light cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras.
OEM or Customization service is also available
